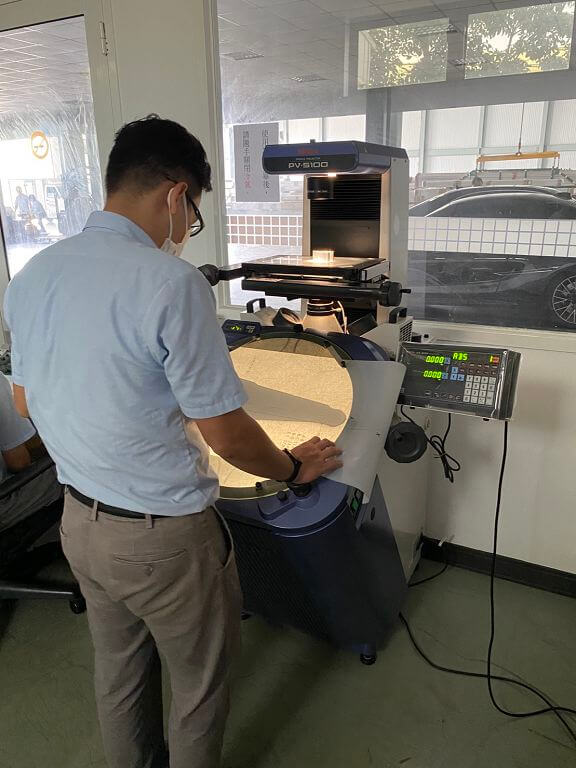

Outline, angle, and size measurement, for high-precision profiles, the projection method and transparent drawings can be used to quickly detect the outline of the section.

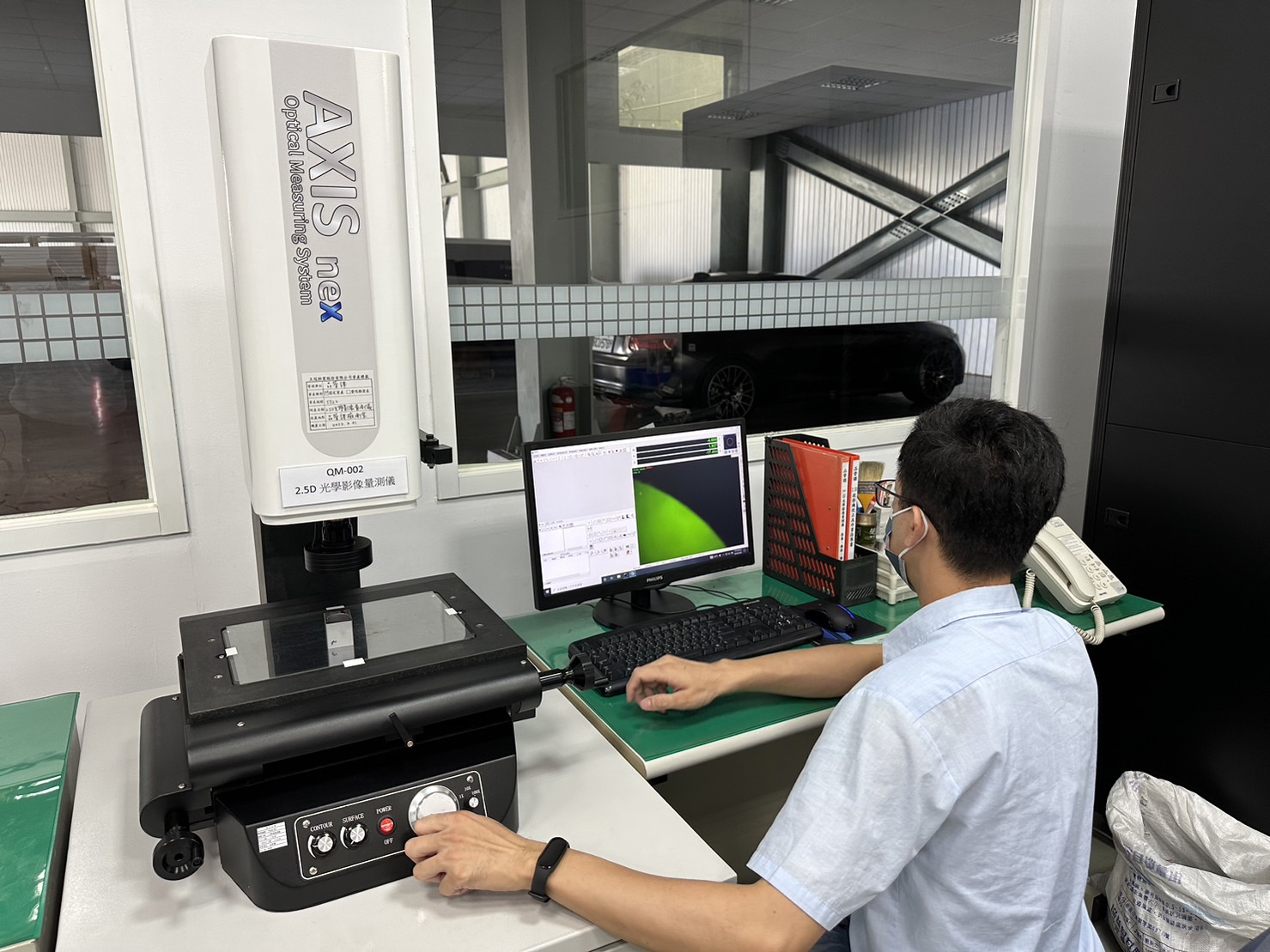

2.5D optical image measuring instrument
Various size measurements, Inspection of product’s sections, used in products that cannot be measured by Vernier Caliper. Adopted a high-precision optical ruler (milling) 0.001mm, linear accuracy ± (3+L/200) μm, repeated accuracy 0.002mmL/200)μm
